152507. HD-108 HDMI Splitter
  • 152507. HD-108 HDMI Splitter
  • 152507. HD-108 HDMI Splitter

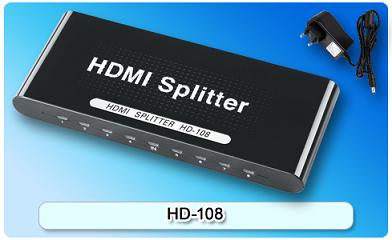

152507. HD-108 HDMI Splitter

Distributes one HDMI input to 8 outputs for multiple HD displays; HDMI Specification 1.3b compliant; DVI Specification 1.0 compliant; Integrated HDCP decryption/encryption engines which are compatible with HDCP 1.2 Encrypted HDCP keys stored in serial EE.
Detailed description

Features:

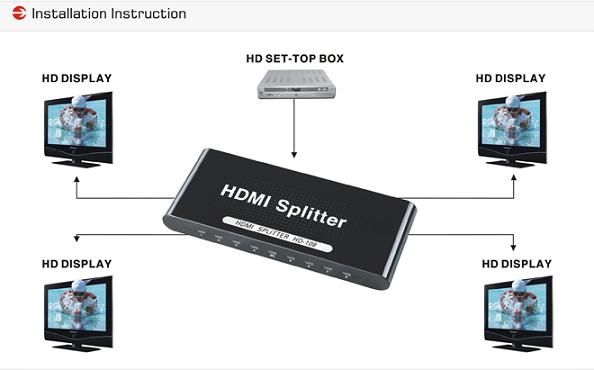

  • Distributes one HDMI input to 8 outputs for multiple HD displays
  • HDMI Specification 1.3b compliant
  • DVI Specification 1.0 compliant
  • Integrated HDCP decryption/encryption engines which are compatible with HDCP 1.2
  • Encrypted HDCP keys stored in serial EE
  • Wide frequency range:25MHz-225MHz TMDS clock
  • Support 12-bit deep color 1080P
  • Supports conversion from HDMI signaling to DVI signaling
  • Supports HDCP Repeater
  • Cascaded to make more than 2/4/8 output ports
  • Easy to install and simple to use.
  • LED indicators for signal connection

Specifications

Item

Specification

Item

Specification

Switchable Input Ports

8 Outputs HDMI Splitter

Frequency range

25-225MHz

HDMI Source Input Port

1

Vertical Frequency Range

60Hz

Output Port to Display

8

Power Consumption (max.)

8 Watts

Input Port Connector

HDMI 19 pin A type

Operation Temperature

0℃ to 70℃

Output Port Connector

HDMI 19 pin A type

Power Adapter

5V 2 A

HDCP Compliant

HDCP Rev 1.2

Housing Material

ABS

Single Link Range

1920*1200

Dimension(mm)

245*103*26mm
