130802. Waterproof IR Camera, 20M

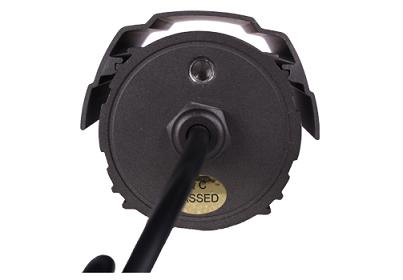

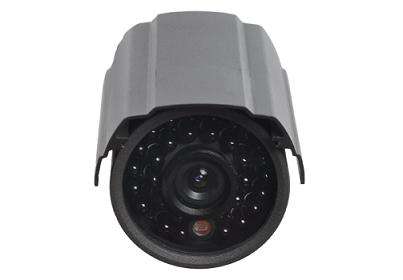

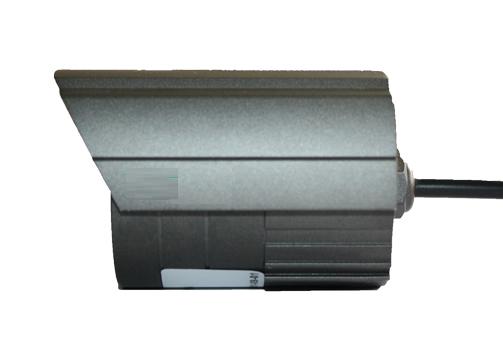

Waterproof IR Camera, 20M
Detailed description
Features
1/3" Sony Super HAD CCD
540 TVL
3.6mm standard lens
φ5×30PCS IR LED
20m IR distance
Parameters
| Model | DF-552RP | DF-556RN | DF-558RN |
| Image Sensor | 1/4" Sharp CCD | 1/4" Sony Super HAD CCD | 1/3" Sony Super HAD CCD |
| Pixels(H×V) | P:512(H)×582(V) N:512(H)×492(V) |
P:512(H)×582(V) N:512(H)×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | 540TVL | |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 3.6mm (6mm Optional) | ||
| IR LED | Ø5×30pcs | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 20m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/75Ω | ||
| Operation Temperature | -20℃～50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 86×57×55mm | ||
| Weight (g) | 230g | ||
| IP Grade | IP66 | ||
