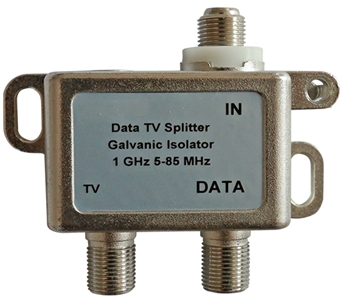

153201. Data-TV splitter

Data-TV splitter, Galvanic Isolator, Data: 5-1218MHz, TV: 85-1218MHz

Detailed description

Description

Our high quality RF isolator can solve ground loop and hum problems, and provides up to 3kV withstanding voltage capability to protect your LCD TV, HDTV. The RF isolator is also suitable for use in TV, CATV, CCTV communication and testing systems

Features

CE Approved, Class A RFI Shielding

SMD, High Stability, High Rejection, Low Loss, Excellent Return Loss

Suitable for MoCA, CATV, Cablenet and other communication systems

Electric Specifications

	MHz	TV	DATA
Insertion Loss (Max.) dB	5-85	35	-
Insertion Loss (Max.) dB	5-1218	-	6.5
	110-1218	7.0	-
Isolation(Min.) dB	5-85	40	40
	110-1000	20	20
	1000-1218	18	18
Return Loss (In-Out Min.) dB	15-1000	16	16
	1000-1218	14	14
Screening effectiveness EN 50083/2	5-300	85 dB.
	300-470	80 dB.
	470-950	75 dB.
	950-1218	55 dB.
Galvanic İsolation (60 seconds) Inner(Input)- Inner(Input) Outer(Input)-outer(output)	2120 V DC / 0,7 mA
	230 V AC / 2 mA
Impedance	75 ohm
DC Block -Blocking Capacitors	All Ports
Equipment Approval	CE Declaration Document
Connector	F-Male to F-Female
Housing	Min. 1.5 μ m White Bronze/Ni Sn/Nickel/Sn/Cu Sn plated
Center conductor	Gold/Silver/Tin/Cu Sn plated beryllium copper/ phosphorus bronze

Mechanical Dimension

Environmental
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +70°C
Mechanical
Housing Dimensions (L x H x D)	46mm x 27.6mm x19.5mm

Material/Component

Component	Material & Specification
Case	Zinc (Zn), 1.5µm NiSn plated
Cover	Fe
Pin – center conductor	Gold plated Beryllium-Copper (BeCu)
