151410. GC-1018 5-1000MHz 8-way Splitter
  • 151410. GC-1018 5-1000MHz 8-way Splitter

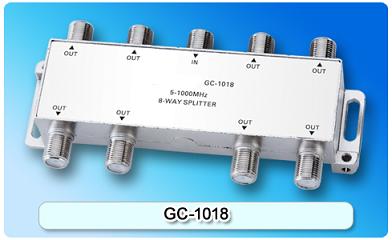

151410. GC-1018 5-1000MHz 8-way Splitter

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm; Arched housing design, can pass the cable through housing.
Detailed description



Features:

  • Zinc die-cast housing, nickel-plated
  • Screening factor: 5-1000MHz≥100dB
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm
  • Arched housing design, can pass the cable through housing


Specifications


Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤10.5

≥30

≥20

40-470

≤11.0

≥27

≥20

470-860

≤11.5

≥27

≥18

860-1000

≤12.0

≥25

≥17
