151547. GC-4101 5-1000MHz 1-way Tap
  • 151547. GC-4101 5-1000MHz 1-way Tap

151547. GC-4101 5-1000MHz 1-way Tap

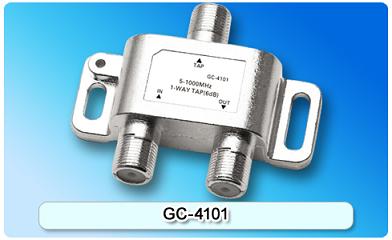

Zinc die-cast housing, tin-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-1000MHz≥100dB; Micro-strip circuit design and perfect performance index; All ports F-(f) connector,75Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Easy installation with two edge hole sites
  • Screening factor: 5-1000MHz≥100dB
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f) connector,75Ohm

Specifications

Item

Frequency Range

6

8

10

12

14

16

18

20

22

24

26

28

30

32

Insertion Loss
(dB)

5-40(MHz)

2.5

2.0

2.0

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

40-470(MHz)

2.5

2.0

2.0

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

470-860(MHz)

2.5

2.0

2.0

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

860-1000(MHz)

3.0

2.4

2.4

1.5

1.2

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-470(MHz)

±1.0

470-860(MHz)

±1.5

860-1000(MHz)

±1.5

Reverse Isolation
(dB)

5-40(MHz)

25

30

25

30

30

30

35

35

35

40

42

42

42

45

40-470(MHz)

24

28

25

28

28

28

30

32

32

35

38

38

40

42

470-860(MHz)

24

28

25

28

28

28

30

32

32

35

38

38

40

42

860-1000(MHz)

22

25

25

26

26

26

28

28

28

28

30

35

36

38

Return Loss
(dB)

5-40(MHz)

20

20

20

20

20

20

20

20

20

20

20

20

20

20

40-470(MHz)

20

20

20

20

20

20

20

20

20

20

20

20

20

20

470-860(MHz)

17

17

17

17

17

17

17

17

17

17

17

17

17

17

860-1000(MHz)

17

17

17

17

17

17

17

17

17

17

17

17

17

17
